D70307BS-2A

ProductsTERMINALA~Z PRODUCT SERIES INDEXD SERIES - FASTON TERMINALD7 SERIESD70307BS-2A

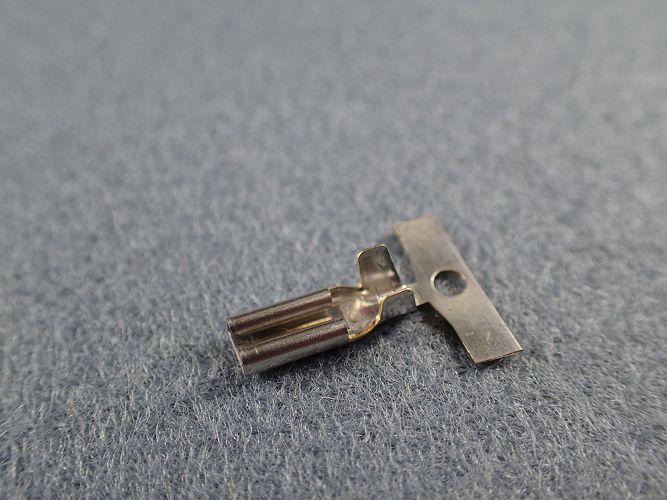

Product Name：D70307BS-2A
  • Product Number：01D70307BS02A
  • Product Category：TERMINAL
  • Series：D SERIES - FASTON TERMINAL
  • 國際通稱：
  • Male/Female：Female
  • Sealed/Unsealed：Unsealed
  • Number of Positions：
  • Operating Temperature range：
  • Thickness：0.3
  • Wire Range： 0.32~1.31
  • Wire Outer Diameter：
  • Electrical Characteristics：
    Download：
  • 2D

The drawings on our website for reference only. Please contact us a.s.a.p. if you want to confirm final version of the specifications.

Material：Brass Treament：Bright Tin-Plating(Pls see the drawing) Quantity Per Package：6000 Feeding Type：Side Feeding Type Packing Type：Cardboard axis Color： Number of Rows： Flammability Rating： Insulator O.D. ：1.7~2.5
