A10202PS-2

ProductsTERMINALA~Z PRODUCT SERIES INDEXA SERIES - BARREL TUBEA1 SERIES - BARREL TUBE FEMALE TERMINALA10202PS-2

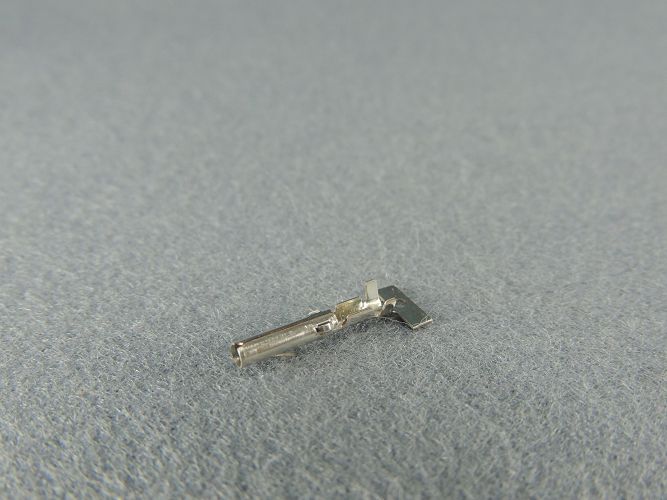

Product Name：A10202PS-2
  • Product Number：01A10202PS02
  • Product Category：TERMINAL
  • Series：A SERIES - BARREL TUBE
  • 國際通稱：
  • Male/Female：Female
  • Sealed/Unsealed：Unsealed
  • Number of Positions：
  • Operating Temperature range：-25℃~+85℃
  • Thickness：0.3
  • Wire Range： 0.32~0.82 mm2
  • Wire Outer Diameter：
  • Electrical Characteristics：
    Download：
  • 2D

The drawings on our website for reference only. Please contact us a.s.a.p. if you want to confirm final version of the specifications.

Insulator O.D.：1.7~2.1 mm

Material：Phosphor Bronze

Treament：Bright Tin-Plating

Quantity Per Package：6000 pcs

Feeding Type：Side Feeding Type

Packing Type：Cardboard axis

Male Products
A00202PS-2
