B40516BS-2

ProductsTERMINALA~Z PRODUCT SERIES INDEXB SERIES - RING TONGUE SHAPEB40516BS-2

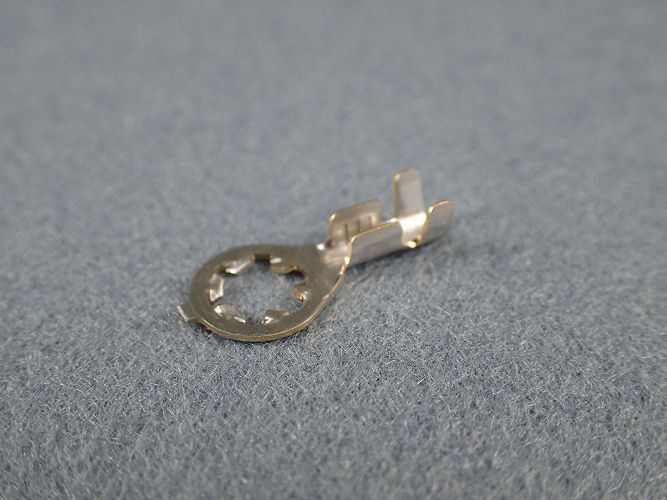

Product Name：B40516BS-2
  • Product Number：01B40516BS02
  • Product Category：TERMINAL
  • Series：B SERIES - RING TONGUE SHAPE
  • 國際通稱：
  • Male/Female：N/A
  • Sealed/Unsealed：Unsealed
  • Number of Positions：
  • Operating Temperature range：
  • Thickness：0.5
  • Wire Range： 1.31 mm2
  • Wire Outer Diameter：
  • Electrical Characteristics：
    Download：
  • 2D

The drawings on our website for reference only. Please contact us a.s.a.p. if you want to confirm final version of the specifications.

Insulator O.D. ：3.2 mm

Material：Brass

Treament：Tin-Plating

Quantity Per Package：5000 pcs

Feeding Type：End Feeding Type

Packing Type：Cardboard axis
