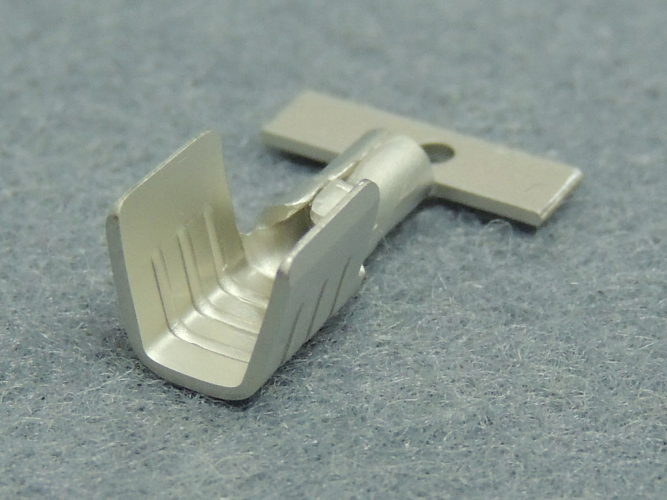

Product Name：H13016BS-T2#
  • Product Number：01H13016BS02YT
  • Product Category：TERMINAL
  • Series：H SERIES - DIP IN TERMINAL
  • 國際通稱：
  • Male/Female：N/A
  • Sealed/Unsealed：Unsealed
  • Number of Positions：
  • Operating Temperature range：-25℃~+85℃
  • Thickness：0.6
  • Wire Range： 1.3~0.8
  • Wire Outer Diameter：
  • Electrical Characteristics：
    Download：
  • 2D

The drawings on our website for reference only. Please contact us a.s.a.p. if you want to confirm final version of the specifications.

Material：Brass

Treament：Matte Tin-Plating(Pls see the drawing)

Quantity Per Package：2500 PCS

Feeding Type：Side Feeding Type

Packing Type：Cardboard axis

Insulator O.D. ：2.5~2.1 mm
