SPEC Search

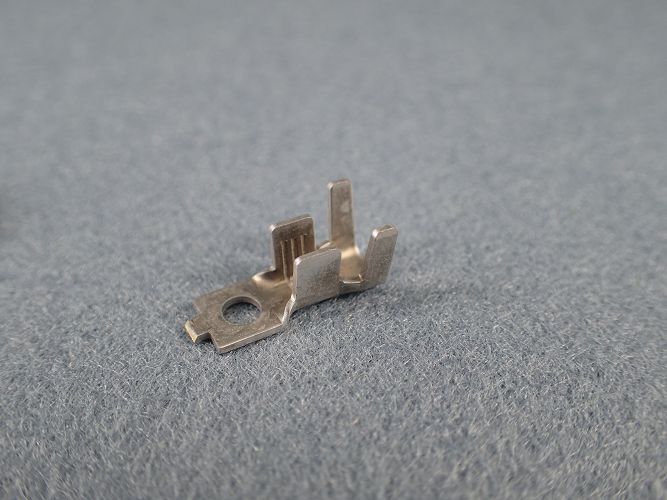

Product Name:B40336BS-T2#
  • Product Number:01B40336BST02Y
  • Product Category:TERMINAL
  • Series:B SERIES - RING TONGUE SHAPE
  • 國際通稱:
  • Male/Female:N/A
  • Sealed/Unsealed:Unsealed
  • Number of Positions:
  • Operating Temperature range:
  • Thickness:0.7
  • Wire Range: 3.31~5.26 mm2
  • Wire Outer Diameter:
  • Electrical Characteristics:
    Download:
  • 2D

The drawings on our website for reference only. Please contact us a.s.a.p. if you want to confirm final version of the specifications.

Insulator O.D. :4.2~5 mm

Material:Brass

Treament:Matte Tin-Plating

Quantity Per Package:5000 pcs

Feeding Type:End Feeding Type

Packing Type:Cardboard axis
